Hiking Backpack OEM/ODM Blueprint: Frame Systems, Technical Fabrics & Ergonomic Design (2026)

The global hiking backpack market is valued at approximately USD 7.2 billion in 2026 and growing at a 5.8% CAGR, fueled by the post-pandemic outdoor recreation boom and the expanding ultralight backpacking movement. For brands looking to capture share in this competitive category, the product itself—specifically the engineering behind frame systems, fabric selection, and ergonomic design—is the primary differentiator.

At JUNYUAN Bags, we have manufactured hiking backpacks for leading outdoor brands across North America, Europe, and Asia-Pacific for over 22 years. Our Quanzhou, Fujian facility—shipping FOB Xiamen—combines advanced frame engineering, technical fabric expertise, and ergonomic design capabilities to produce hiking packs from 20L daypacks to 75L expedition loads. This blueprint provides B2B buyers with the technical foundation needed to develop competitive hiking backpack lines through OEM/ODM partnerships.

Whether you are a startup launching your first hiking pack or an established brand expanding your range, this guide covers every engineering decision that separates a $29 retail pack from a $349 premium product.

Internal Frame vs. External Frame: Design Philosophy & Engineering

The frame system is the structural backbone of any hiking backpack. It determines how load is distributed across the body, how the pack moves with the hiker, and ultimately how comfortable the pack feels under load over extended distances.

Internal Frame Systems

Internal frame backpacks dominate the modern market, accounting for approximately 85% of all hiking backpacks sold globally. The frame consists of one or two aluminum stays (typically 6061-T6 aluminum alloy, 10–12mm diameter) that run vertically inside the pack, conforming to the curvature of the spine. The frame is integrated into the pack body and works in conjunction with a contoured hip belt to transfer 70–85% of the load to the hips.

Single-Stay Design

A single vertical aluminum stay runs center-back. Lighter and simpler, suitable for packs under 40L and loads under 15kg. Most daypacks and fastpacks use this design.

Dual-Stay Design

Two parallel aluminum stays flanking the spine provide greater load distribution and pack stability. Standard for 40L+ packs carrying 15–30kg. The stays are typically set 15–18cm apart, following the natural curve of the erector spinae muscles.

Frameless Designs

Ultralight backpacks (sub-600g base weight) forgo the frame entirely, relying on a stiff foam back panel and minimalist hip belt. These are popular in the thru-hiker community but sacrifice load comfort above 12kg.

External Frame Systems

External frame packs mount the frame outside the pack body, creating a rigid structure that keeps the load centered over the hips and allows maximum ventilation. While accounting for only ~15% of the market, external frames excel in specific use cases:

• Heavy loads (25kg+): External frames transfer load more efficiently at extreme weights
• Hot climates: Maximum airflow between frame and back reduces perspiration by 30–50%
• Irregular cargo: External frames allow lashing oversized items (canoes, game animals) to the frame
• Military/tactical: Many military packs retain external frames for load capacity and modular attachment

For brands evaluating frame options, understanding your target customer’s load weight and hiking style is essential before committing to a frame architecture. This analysis should inform the entire downstream design process. For those starting from concept, our custom bag design guide provides frameworks for translating market research into technical specifications.

Suspension System Engineering: The Science of Load Transfer

The suspension system encompasses every component that connects the pack’s load to the human body. A well-engineered suspension system distributes weight to the body’s strongest structures (pelvis, shoulders) while minimizing pressure points and allowing natural range of motion.

Load Transfer Path

In a properly designed internal frame pack, the load transfer follows this path:

1. Pack body → aluminum stays (frame)
2. Stays → hip belt attachment points (at base of frame)
3. Hip belt → iliac crest of the pelvis (primary load bearing: 70–85%)
4. Shoulder straps → trapezius muscles (stabilization: 15–30%)
5. Load lifter straps → clavicle (fine-tuning shoulder strap angle)

The critical engineering challenge is ensuring the hip belt captures 70%+ of the load. If the hip belt is too narrow, poorly padded, or positioned incorrectly, load shifts to the shoulders, causing trapezius fatigue and discomfort within 1–2 hours of hiking.

Hip Belt Design

The hip belt is the single most important comfort component in a hiking backpack. Key design parameters include:

Shoulder Strap Ergonomics

Shoulder straps must balance load support with comfort and freedom of movement. The ideal strap follows an S-curve that wraps around the deltoid muscle without pressing on the clavicle or cutting into the armpit. Key specifications include:

• Width: 5–6.5cm at the shoulder crown, tapering to 3.5cm at the sternum strap attachment
• Padding: 10–15mm closed-cell foam with breathable mesh cover
• Sternum strap: Adjustable height (sliding rail or ladder lock), 2–2.5cm wide elastic webbing
• Pull direction: Forward-pull design (strap pulls forward to tighten) is now industry standard

Back Panel Ventilation

Back panel design directly impacts thermal comfort. Modern hiking backpacks employ several ventilation strategies:

• 3D mesh suspended panels: A mesh layer stretched over a foam frame creates an air gap between the pack and the wearer’s back, reducing perspiration by 15–25%
• Channeled foam: Foam back panels with vertical or diagonal air channels promote convective cooling
• Trampoline mesh: A tensioned mesh panel (like Osprey’s Anti-Gravity system) provides maximum ventilation but adds 200–400g to pack weight

For more on ergonomic considerations in bag design, see our guide on custom bag design for businesses, which covers how ergonomic design impacts brand perception and customer satisfaction.

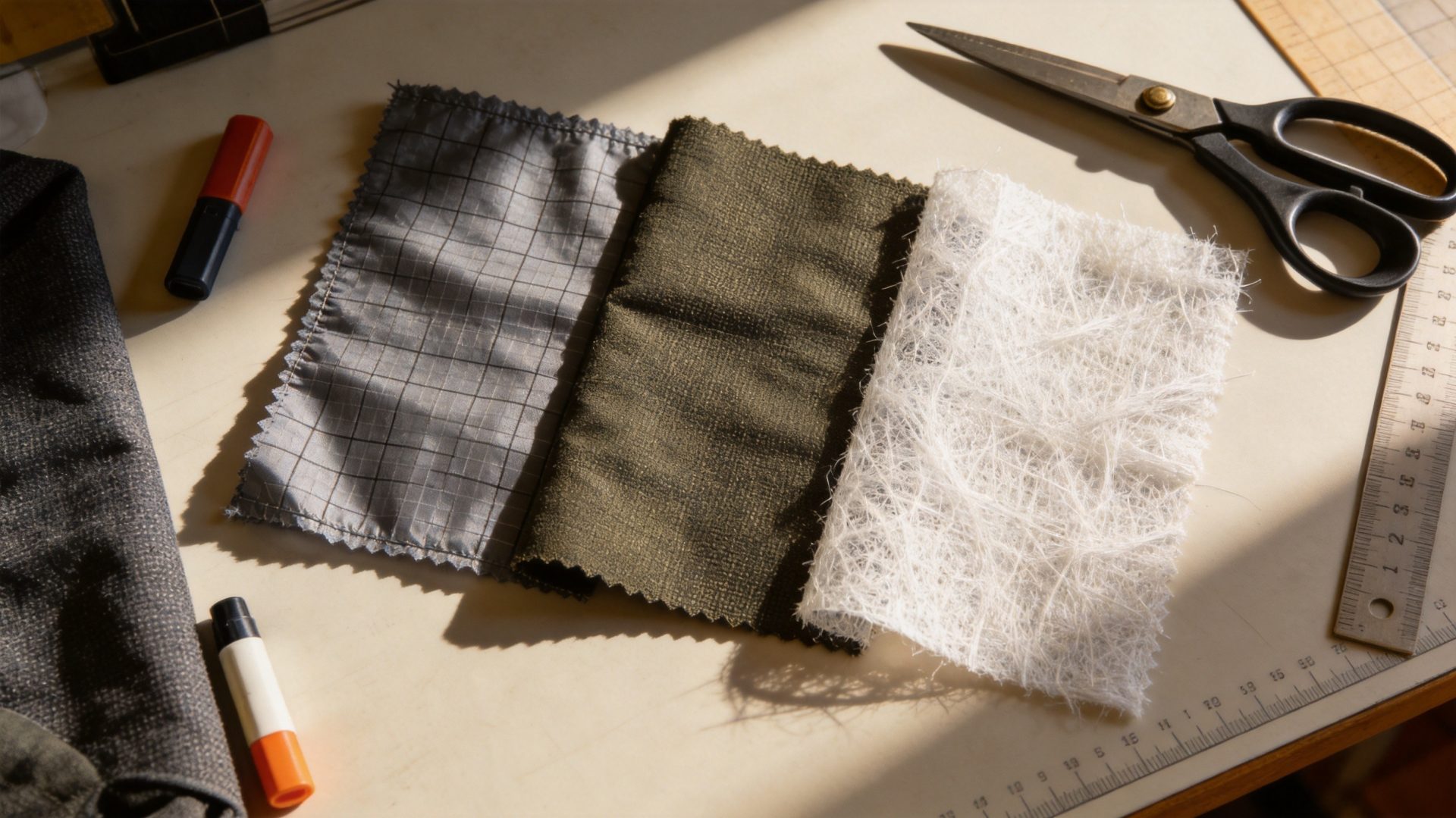

Technical Fabric Selection: Ripstop Nylon, Cordura & Dyneema

Fabric selection in hiking backpacks involves a complex tradeoff between weight, durability, water resistance, and cost. The right fabric for a $49 daypack differs dramatically from the right fabric for a $399 expedition pack.

Ripstop Nylon

Ripstop nylon features a reinforced grid weave where thicker yarns are interwoven at regular intervals (typically 5–8mm) to prevent small tears from propagating. It is the workhorse fabric for hiking backpacks.

• Common deniers: 70D (ultralight), 100D (daypack), 210D (all-around), 420D (heavy-duty)
• Typical coating: PU (polyurethane) or TPU for waterproofing
• Weight: 40–160 gsm depending on denier
• Cost: $2.50–$6.00 per meter (210D RIP with PU coating)

Cordura Nylon

Cordura is INVISTA’s branded high-tenacity nylon fabric, renowned for its exceptional abrasion resistance (3x that of standard nylon, 10x that of cotton canvas). It is the premium choice for high-wear areas like pack bottoms, hip belt contact points, and ice axe patches.

• Common deniers: 330D (light Cordura), 500D (standard), 1000D (heavy-duty)
• Typical coating: PU or TPU
• Abrasion resistance: Significantly exceeds standard nylon at equivalent denier
• Cost premium: 30–50% over standard nylon

Dyneema Composite Fabric (DCF)

Dyneema (formerly Cuben Fiber) is an ultra-high-molecular-weight polyethylene (UHMWPE) composite that is 15x stronger than steel at equivalent weight. DCF has become the premium material for ultralight backpacking, where every gram matters.

• Weight: 1.4–4.3 oz/sq yd (vs. 5–12 oz/sq yd for nylon)
• Strength: 35,000–70,000 psi tensile strength
• Waterproof: Inherently waterproof (no coating needed)
• Cost premium: 10–15x standard nylon—DCF packs retail for $300–$500+
• Limitation: Low abrasion resistance, poor UV longevity, difficult to sew (requires specialized techniques)

Hybrid Fabric Strategies

Most high-quality hiking packs use different fabrics in different zones:

For a comprehensive comparison of fabric options across all bag categories, explore our backpack material selection guide covering nylon vs. polyester vs. canvas. Our analysis of waterproof fabric durability also provides testing data relevant to hiking pack materials.

Ergonomic Design & Load Distribution Engineering

Modern hiking backpack design has evolved from simple load carriers to sophisticated ergonomic systems. The difference between a pack that feels comfortable at 5km versus one that remains comfortable at 25km comes down to precise engineering of the load distribution system.

Center of Gravity Management

The pack’s center of gravity should sit directly over the hiker’s center of gravity (approximately at the level of the T8–T10 vertebrae, just below the shoulder blades). Heavy items should be packed close to the spine and at mid-back height. The pack design facilitates this through:

• Internal load cell pockets: Positioned at mid-height, close to the back panel
• Compression straps: Pull load toward the frame, reducing sway
• Top-loading vs. panel-loading: Top-loading keeps heavy items high; panel-loading offers organization at the cost of slightly rearward weight distribution

Adjustable Torso Length

One of the most important features in multi-day hiking packs is adjustable torso length. Human torso lengths vary by 5–8cm across the population. A pack with fixed torso length will fit approximately 60% of users well; adjustable torso length covers 90%+ of users.

Common adjustment mechanisms include:

• Ladder-lock system: Shoulder strap yoke attaches to ladder webbing; adjust by re-threading the buckle. Simple, reliable, 3–5 size positions.
• Hook-and-loop (Velcro): Shoulder yoke attaches via hook-and-loop to the back panel. Quick adjustment but less precise.
• Sliding rail system: Yoke slides on a rail track for infinite adjustment. Premium option, adds 100–200g.

Dynamic Load Control

When hiking on uneven terrain, the pack shifts and bounces. Dynamic load control systems reduce this movement:

• Anti-sway geometry: Frame stays angled to create a truss structure that resists lateral movement
• Pre-curved hip belts: Wrap around the iliac crest, preventing ride-up during dynamic movement
• Load lifter straps: Connect the top of the shoulder straps to the frame, pulling the pack close to the body

For brands developing ergonomic packs, our study on the impact of ergonomic bags on performance provides data-backed insights on how suspension design affects user comfort and satisfaction scores.

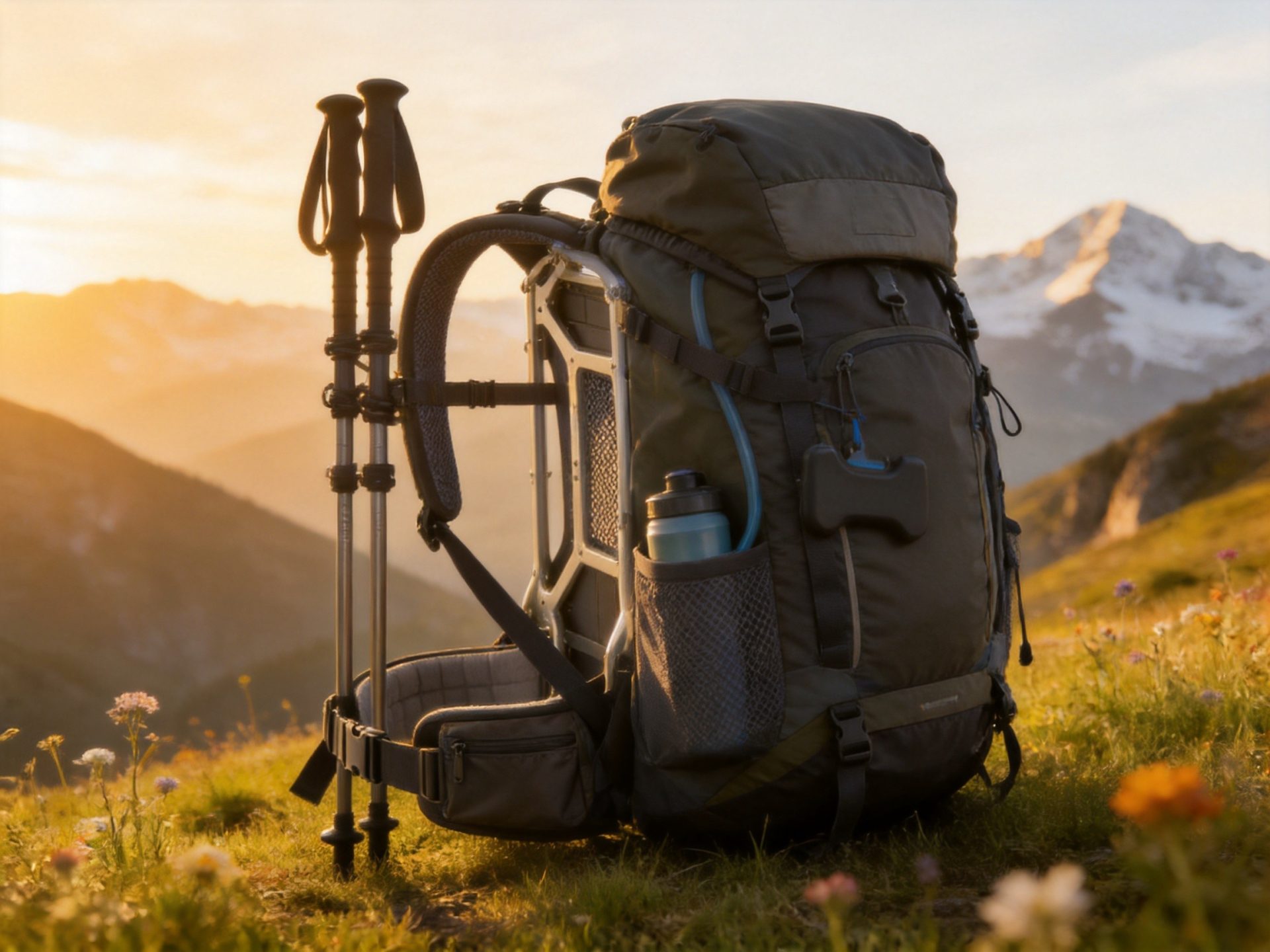

Functional Features: Hydration, Attachment Systems & Organization

Beyond the core engineering of frame, suspension, and fabric, hiking backpacks require a suite of functional features that differentiate products and drive purchasing decisions.

Hydration System Integration

Hydration compatibility is now expected in virtually all hiking backpacks above 20L. Key design elements include:

• Internal sleeve: Dedicated hydration bladder compartment (fits 1.5L–3L bladders) positioned against the back panel for optimal weight distribution
• Tube routing port: Reinforced eyelet or slot at the top of the back panel for hydration tube exit, sized to fit 8–12mm diameter tubes
• Tube clip: Sternum strap clip or shoulder strap clip to secure the bite valve within easy reach
• Quick-access pocket: Top or side pocket allowing bladder refills without opening the main compartment

Trekking Pole & Ice Axe Attachment

External attachment systems for trekking poles and ice axes are critical for thru-hikers and mountaineers:

• Trekking pole loops: Elastic cord loops at the base of the pack, combined with compression strap or bungee retention at the top
• Ice axe loop: Reinforced Hypalon or Cordura patch at the base with a shaft retention strap
• Daisy chain: Series of reinforced webbing loops on the front panel for gear attachment (common on approach and alpine packs)

Helmet Carry & Rope Management

For alpine and climbing-specific hiking packs:

• Helmet carry: Elastic mesh pocket or dedicated strap system at the front or bottom of the pack
• Rope straps: Compression straps configured to secure a coiled climbing rope
• Gear loops: Reinforced webbing loops for carabiners, slings, and protection

Compression & Stabilization Systems

• Side compression straps: 2–3 pairs of 2cm webbing straps with ladder-lock buckles, pulling the load inward toward the frame
• Top compression/lid lifters: Straps connecting the top lid to the shoulder straps, pulling the pack close and stabilizing the load
• Hip belt stabilizers: Small straps connecting the hip belt to the base of the pack, preventing hip belt ride-up

Water Bottle Pockets

Side pockets for water bottles are the most-used feature in hiking packs. Design best practices include:

• Stretch mesh: Power mesh or elasticized nylon mesh that grips bottles securely
• Bottom reinforcement: Cordura or Hypalon reinforcement at the pocket base to resist abrasion from repeated bottle insertion/removal
• Front or angled access: Pockets positioned so the user can reach bottles without removing the pack (angled forward on the hip belt area)
• Capacity: Sized to accommodate 1L Nalgene bottles (89mm diameter) and popular soft bottles

For more on feature design and manufacturing considerations, see our guide on custom hardware and branding for bag manufacturers.

Capacity Design: 20L, 35L, 50L, and 65L+ — Engineering Differences

Capacity is not just about making the pack bigger. Each capacity class requires fundamentally different design approaches:

The transition from 35L to 50L is the most significant engineering jump, requiring the addition of a full frame system, load-bearing hip belt, and significantly more robust materials. This is also where the unit cost increases substantially due to additional components and assembly labor.

OEM Customization & Branding Process

Developing a custom hiking backpack line through OEM/ODM involves several stages, each requiring close collaboration between brand and manufacturer.

Phase 1: Product Definition (2–3 Weeks)

Define the target market, price point, capacity range, and key features. At JUNYUAN, we work with brands to translate market positioning into technical specifications:

• Frame type and material specification
• Fabric selection by zone
• Suspension system architecture
• Feature list and hardware specification
• Colorway and branding requirements

Phase 2: Design & Prototyping (4–6 Weeks)

Our engineering team creates detailed CAD patterns, 3D renderings, and first prototypes. For hiking packs, we produce multiple prototypes to iterate on fit and ergonomics—unlike simpler bag categories, hiking packs require human fit testing.

Phase 3: Fit Testing & Validation (2–3 Weeks)

Prototypes are fit-tested on multiple body types (male/female, different torso lengths) with weighted loads. Feedback is incorporated into design revisions before finalizing for production. This stage is critical for hiking packs because a poorly-fitting suspension system will generate negative reviews regardless of how good the materials are. For detailed guidance on sampling, refer to our bag sample development guide.

Phase 4: Production & Quality Control (30–45 Days)

Mass production follows established production planning timelines. Quality control includes:

• Frame straightness and alignment verification
• Stitch strength testing (bar-tack reinforcement at all load-bearing attachment points)
• Zipper function testing (smooth operation, no binding)
• Weight verification (production packs must be within +/-5% of spec weight)
• Load testing (pack loaded to 125% of rated capacity for 24 hours to verify structural integrity)

Branding Options for Hiking Backpacks

• Embroidered logos: Premium feel, durable, works on all fabrics
• Silkscreen printing: Cost-effective for larger areas, ideal for brand graphics
• Sublimation: Full-color, edge-to-edge graphics on polyester fabrics
• Debossed/hot-stamped: Premium leather or Hypalon patches with brand logo
• Custom hardware: Branded zipper pulls, buckles, and cord locks
• Woven labels: Interior brand labels, size indicators, material composition

For a comprehensive guide on branding options, explore our resource on custom hardware and branding for bag manufacturers. If you are building a brand from scratch, our guide on launching a private label backpack brand covers the complete journey from concept to market.

2026 Outdoor Backpack Market Trends

The hiking backpack market in 2026 is shaped by several macro trends that B2B buyers should factor into product development:

• Ultralight revolution: The thru-hiking community’s preference for sub-1kg packs is driving innovation in frameless designs and Dyneema construction. Brands are introducing ultralight options in traditionally heavy categories.
• Sustainability mandates: European brands increasingly require recycled nylon and RPET fabrics. PFC-free DWR treatments are becoming standard.
• Gender-specific design: Women’s-specific hiking packs (narrower torso, differently contoured hip belts, shorter back length) are moving from niche to mainstream.
• Modular systems: Packs with removable components (detachable daypack lids, swappable hip belts) offer versatility and extend product lifespan.
• Smart integration: GPS trackers, solar charging panels, and LED safety lighting are being integrated into premium hiking packs.
• Direct-to-consumer growth: Brands selling directly online need smaller MOQs and faster turnaround, driving demand for agile OEM partners.

For brands entering the outdoor segment, our analysis of top waterproof backpack manufacturers provides competitive intelligence on leading OEM suppliers. We also recommend reviewing our guide on MOQ strategies for small brands working with Chinese manufacturers.

Regulatory & Compliance Considerations

Hiking backpacks destined for international markets must comply with several regulatory frameworks:

• REACH (EU): Chemical compliance for all coatings, dyes, and treated fabrics
• CPSIA (US): Lead and phthalate limits, particularly relevant for packs marketed to younger demographics
• Prop 65 (California): Warning label requirements for chemicals known to cause health effects
• Bluesign / Oeko-Tex: Voluntary but increasingly expected certifications for outdoor brands

Our export compliance guide provides a comprehensive checklist for ensuring your hiking backpacks meet all international requirements. Additionally, learn how to verify material quality in bag manufacturing to ensure your fabrics meet specification before production begins.

FAQ: Hiking Backpack OEM/ODM Manufacturing
