Introduction — Why Standardized Dimensions Matter in Bag Manufacturing
In the global bag manufacturing industry, bag dimensions are far more than numbers on a spec sheet. They determine whether a backpack fits airline overhead bins, whether a golf bag sits properly on a cart, and whether a handbag meets the proportions consumers expect. For B2B buyers sourcing from OEM/ODM factories, standardized dimension specifications reduce sampling rounds, minimize production disputes, and ensure consistency across thousands of units.
Yet many buyers — especially those new to custom bag manufacturing — struggle with how to specify dimensions correctly, what tolerances are acceptable, and which size ranges are considered “standard” across categories like backpacks, duffle bags, handbags, golf bags, cooler bags, pet bags, and diaper bags.
This guide consolidates industry-accepted bag dimension standards by category, provides a practical measurement methodology, covers airline carry-on limits critical for travel bag design, and explains how to spec dimensions in tech packs for OEM orders. Whether you’re launching a new product line or evaluating suppliers, this reference will help you get it right the first time.
Figure 1: Standard bag dimension measurement points — height (H), width (W), and depth (D) should be measured from the outermost edges of the fully packed bag.
How to Measure Bag Dimensions
Accurate, repeatable measurement is the foundation of quality control in bag manufacturing. Every dimension should be recorded in centimeters (or inches for North American buyers) using a flexible measuring tape on a fully stuffed bag — not flat-laid empty.
Key Measurement Points
| Dimension | How to Measure | Why It Matters |
|---|---|---|
| Height (H) | Bottom of base to the top of the closed bag, measured at the center back panel | Determines carry-on compliance and shelf display |
| Width (W) | Left-to-right at the widest point, measured across the front face | Affects capacity and aesthetic proportion |
| Depth (D) | Front-to-back at the deepest point, with gussets fully expanded | Defines internal volume and load capacity |
| Base (L × W) | Length and width of the bottom panel, measured flat | Critical for stand-alone stability and packaging |
| Strap/Drop Length | From the attachment point to the top of the strap when extended to its maximum | Comfort and wearability — shoulder vs. crossbody vs. hand-carry |
Standard Dimensions by Category
The following size charts reflect widely used industry standards across major bag categories. These ranges are derived from consumer market expectations, retail shelf constraints, and functional requirements. Use them as baseline references when developing new SKUs.

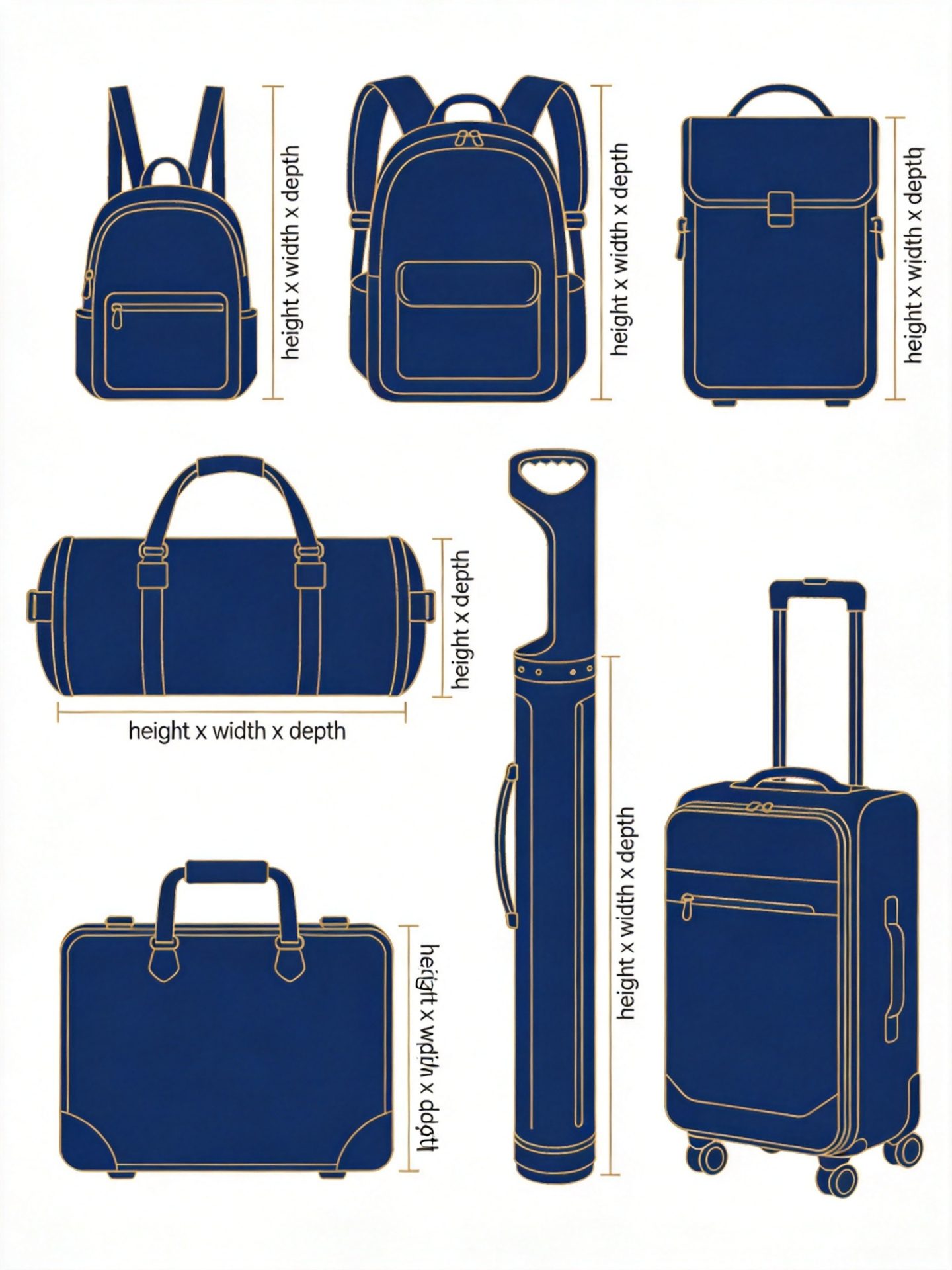

Figure 2: Comparative size chart across major bag categories — use as a quick reference when planning your product line.
Backpacks
| Type | Height (cm) | Width (cm) | Depth (cm) | Typical Volume |
|---|---|---|---|---|
| Mini / Fashion Backpack | 28–32 | 20–25 | 10–12 | 6–10 L |
| Daypack (School/Commute) | 40–45 | 28–32 | 15–18 | 18–25 L |
| Laptop Backpack | 42–48 | 30–34 | 16–20 | 22–30 L |
| Hiking / Trekking Pack | 50–65 | 32–38 | 20–28 | 35–60 L |
| Travel Backpack (Carry-On) | 50–55 | 33–38 | 20–25 | 35–45 L |
Duffle / Gym Bags
| Type | Length (cm) | Height (cm) | Depth (cm) | Typical Volume |
|---|---|---|---|---|
| Small / Underseat | 40–45 | 22–25 | 20–25 | 20–28 L |
| Medium (Gym Standard) | 50–55 | 28–30 | 25–28 | 35–45 L |
| Large / Weekend Bag | 60–65 | 32–35 | 30–35 | 55–75 L |
| XL / Sports Team Bag | 70–80 | 35–40 | 35–40 | 80–110 L |
Handbags
| Type | Height (cm) | Width (cm) | Depth (cm) | Strap Drop (cm) |
|---|---|---|---|---|
| Tote Bag | 30–38 | 33–40 | 12–18 | 25–30 (hand) |
| Satchel / Shoulder Bag | 25–30 | 28–35 | 10–14 | 45–55 |
| Crossbody Bag | 20–25 | 22–28 | 8–12 | 55–65 (adjustable) |
| Clutch / Evening Bag | 15–20 | 25–30 | 3–6 | N/A (wrist strap optional) |
| Hobo Bag | 28–35 | 35–42 | 12–16 | 30–40 |
Golf Bags
| Type | Height (cm) | Width/Diameter (cm) | Base (cm) | Weight (empty) |
|---|---|---|---|---|
| Stand Bag (Cart/Carry Hybrid) | 85–92 | 30–35 | 20 × 25 | 2.0–2.7 kg |
| Cart Bag | 95–102 | 35–40 | 22 × 28 | 2.8–3.5 kg |
| Staff / Tour Bag | 110–120 | 38–45 | 25 × 30 | 4.0–5.5 kg |
| Sunday Bag (Minimalist) | 80–90 | 25–30 | 18 × 22 | 1.2–1.8 kg |
Cooler Bags, Pet Bags & Diaper Bags
| Category | Typical Height (cm) | Typical Width (cm) | Typical Depth (cm) | Notes |
|---|---|---|---|---|
| Soft Cooler Bag | 25–35 | 30–45 | 20–30 | 15–40 Qt range; insulation thickness adds ~2 cm per wall |
| Lunch Cooler Bag | 18–22 | 20–25 | 12–16 | 6–10 Qt; fits standard lunch containers |
| Pet Carrier Bag | 28–43 | 30–45 | 20–30 | Airline under-seat limit: 45 × 30 × 20 cm typical |
| Diaper Bag (Tote Style) | 35–42 | 38–45 | 15–20 | Must fit standard wipes box (22 × 15 cm) and bottles |
| Diaper Backpack | 42–48 | 30–36 | 18–22 | Convertible design with insulated bottle pockets |
Airline Carry-On Dimension Limits
For manufacturers producing travel bags, understanding airline carry-on restrictions is non-negotiable. Exceeding these limits means gate-checked luggage, customer complaints, and returns.
| Airline / Standard | Max Height (cm) | Max Width (cm) | Max Depth (cm) | Linear (cm) |
|---|---|---|---|---|
| IATA Recommended | 56 | 45 | 25 | 115 |
| US Domestic (Major Carriers) | 56 | 36 | 23 | 115 |
| European Low-Cost (Ryanair Free) | 40 | 20 | 25 | — |
| European Low-Cost (EasyJet) | 56 | 45 | 25 | 126 |
| China Domestic | 55 | 40 | 20 | 115 |
| Regional Jets (Small) | 45 | 35 | 20 | 100 |
Custom Sizing for OEM Orders
While standard sizes serve as a reliable starting point, most OEM/ODM projects require custom dimensions tailored to a specific brand’s product positioning, target market, or functional requirements. Here’s how to spec bag dimensions correctly in your tech pack:
1. Dimension Specification in Tech Packs
Every tech pack should include a dimension callout sheet with:
- Finished dimensions (H × W × D) in both cm and inches
- Measurement reference points — clearly marked on a technical drawing
- Tolerance range (see next section)
- Internal compartment dimensions if applicable (laptop sleeve, mesh pockets, etc.)
- Strap/handle lengths and adjustment range
2. Volume-to-Dimension Conversion
If your design brief specifies a target volume (e.g., “30L daypack”), use this approximation to derive dimensions:
Volume (L) ≈ H × W × D (cm) ÷ 1000
Example: 45 × 30 × 22 cm = 29,700 cm³ ≈ 30 L. Note that real capacity is typically 5–10% less than calculated due to panel construction and seam allowances.
3. Proportion Guidelines
Consumer-facing bags follow visual proportion rules. The height-to-width ratio for most bags falls between 1.2:1 and 1.6:1. Bags outside this range appear awkward unless intentionally designed as slim/elongated (e.g., bowling bags, tube duffles).
Figure 3: A professional tech pack dimension sheet — all measurements should reference fixed points and include tolerance ranges for production consistency.
Tolerance Standards in Bag Manufacturing
Dimensional tolerance is the acceptable deviation between the specified measurement and the actual finished product. In the bag manufacturing industry, tolerances are influenced by material stretch, stitching tension, foam thickness, and operator skill.
| Bag Category | Standard Tolerance | Tight Tolerance (Premium) |
|---|---|---|
| Soft Bags (Fabric/Nylon) | ± 5 mm | ± 3 mm |
| Leather / PU Handbags | ± 3 mm | ± 2 mm |
| Golf Bags (Structured) | ± 3 mm | ± 2 mm |
| Hard-Shell Cases | ± 2 mm | ± 1 mm |
| Strap Lengths | ± 10 mm | ± 5 mm |
For buyers working with OEM/ODM bag manufacturers, we recommend specifying both “standard” and “critical” dimensions. Critical dimensions (e.g., laptop sleeve size, airline carry-on height) should use tight tolerance, while non-critical exterior dimensions can follow standard ranges.
Frequently Asked Questions
Q1: What is the standard unit for bag dimensions in international trade?
Centimeters (cm) is the global standard for bag manufacturing and trade. However, North American buyers often request inches alongside cm. In tech packs, we recommend listing both: e.g., 45 × 30 × 15 cm (17.7 × 11.8 × 5.9 in).
Q2: How do I determine the right bag size for a new product?
Start with the standard dimensions for your category (see tables above), then adjust based on your target use case. For example, a commuter backpack targeting laptop users should accommodate a 15.6″ laptop sleeve (minimum internal height: 38 cm). Always test with real-world items before finalizing dimensions.
Q3: What is the difference between interior and exterior dimensions?
Exterior dimensions measure the full outer profile including all panels, piping, and external pockets. Interior dimensions are typically 1–4 cm smaller per axis due to material thickness, padding, and lining. For capacity-critical applications (laptop sleeves, equipment cases), always spec internal dimensions.
Q4: Can I request fully custom dimensions beyond the standard ranges?
Absolutely. Custom dimensions are the core of OEM manufacturing. As long as the proportions remain functional and the structure can be supported by the chosen materials, any size is possible. Visit our OEM vs ODM guide to understand the best sourcing model for custom-size projects.
Q5: What is the minimum order quantity for custom-sized bags?
At Junyuan Bags, our standard MOQ is 500 pieces per design for most categories. For golf bags, the MOQ is 100 pieces, and for handbags, it is also 100 pieces. Contact our team to discuss your specific project requirements.
